SL Trailers

SL 6000 | SL 8000 | SL 13000

The SL range of self loading, rear tip sugarcane trailers make for efficient transportation of pre-bundled sugarcane to the trans-loading site or direct to the mill, no matter the terrain.

SL trailers excel at loading on steep terrain, even when no other mechanical loader is up to the job.

Our standard range consists of the 6, 8 and 13 ton capacity, but we are able to custom build this workhorse to suit your specific load requirements

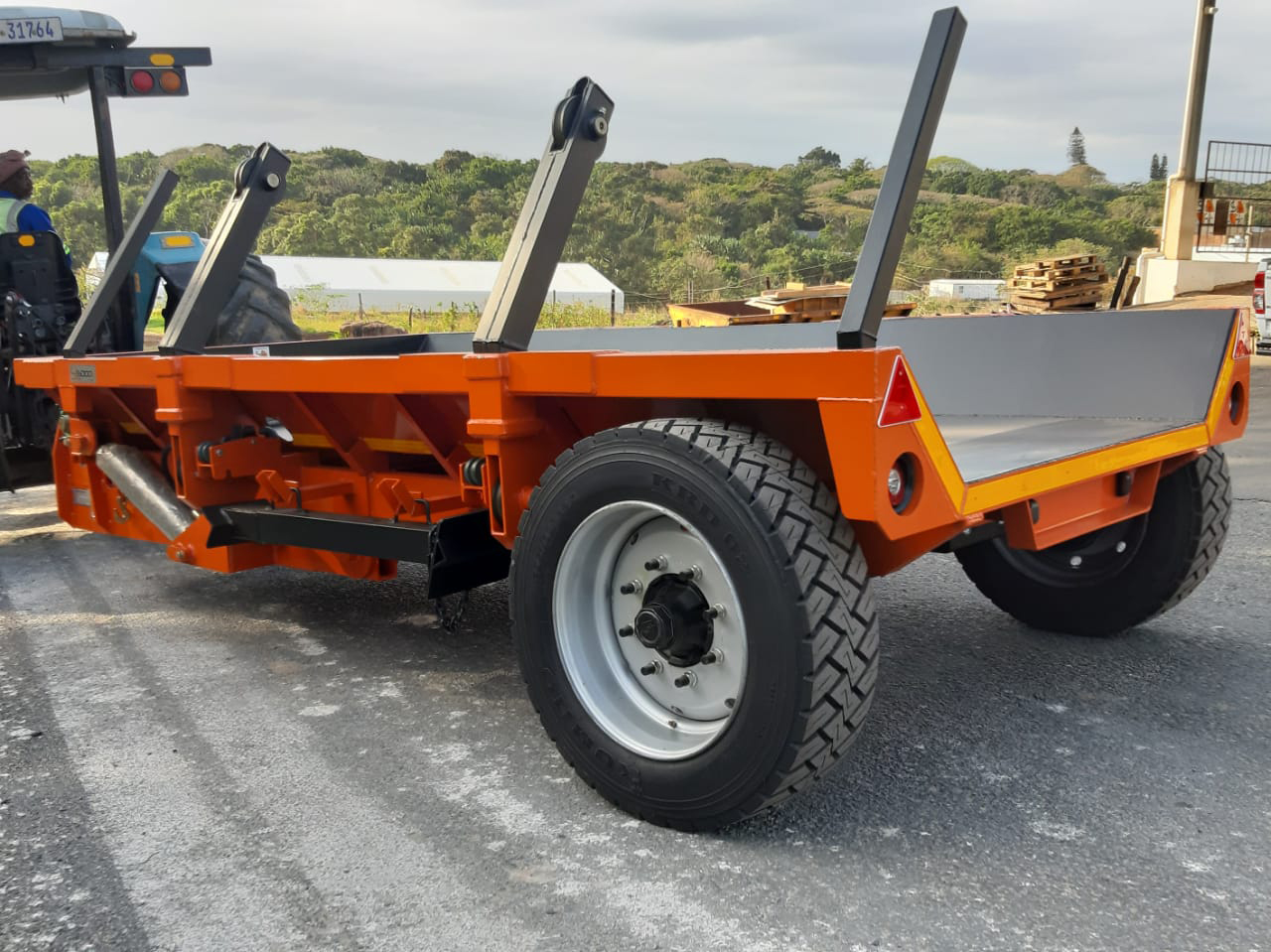

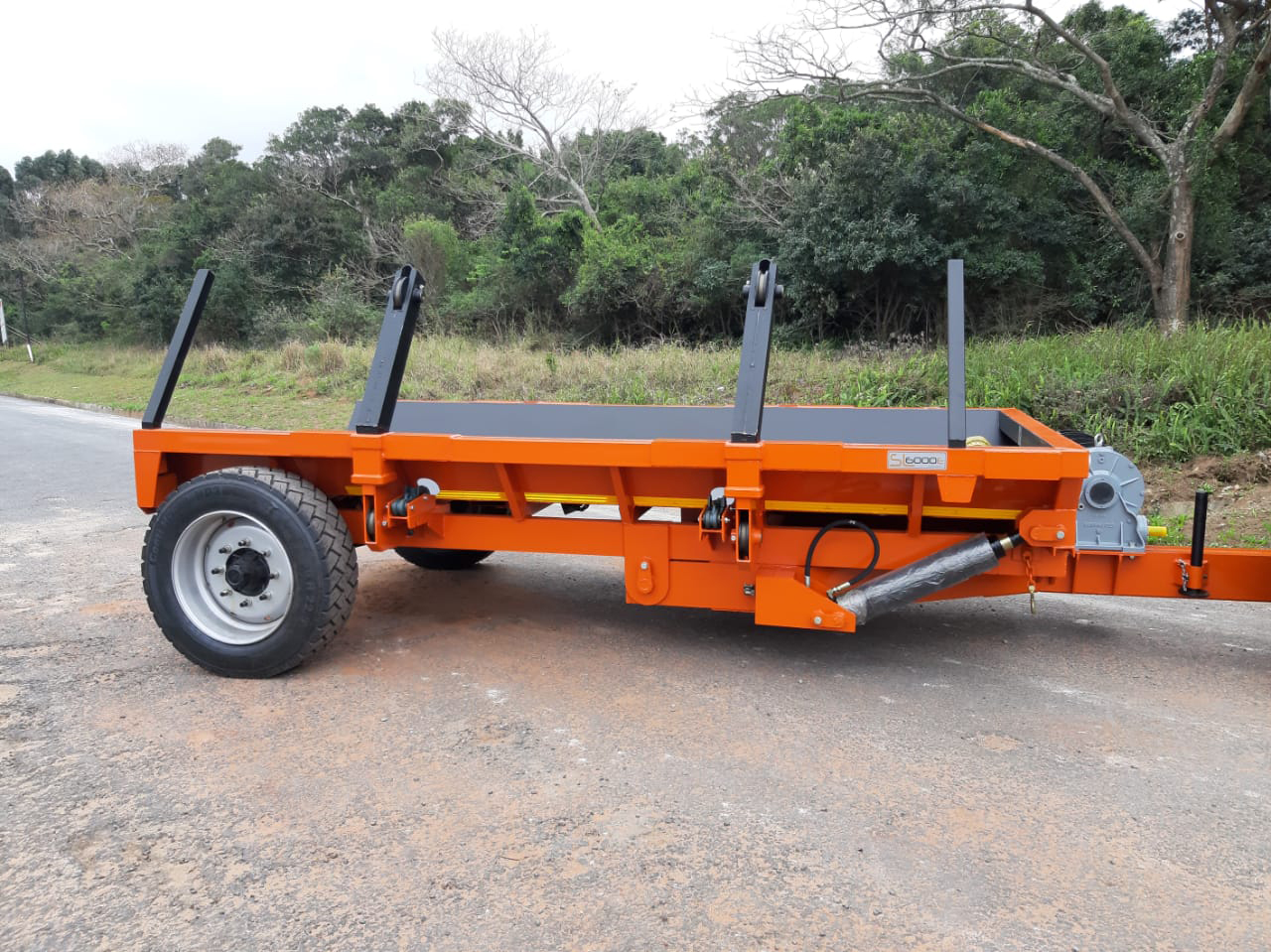

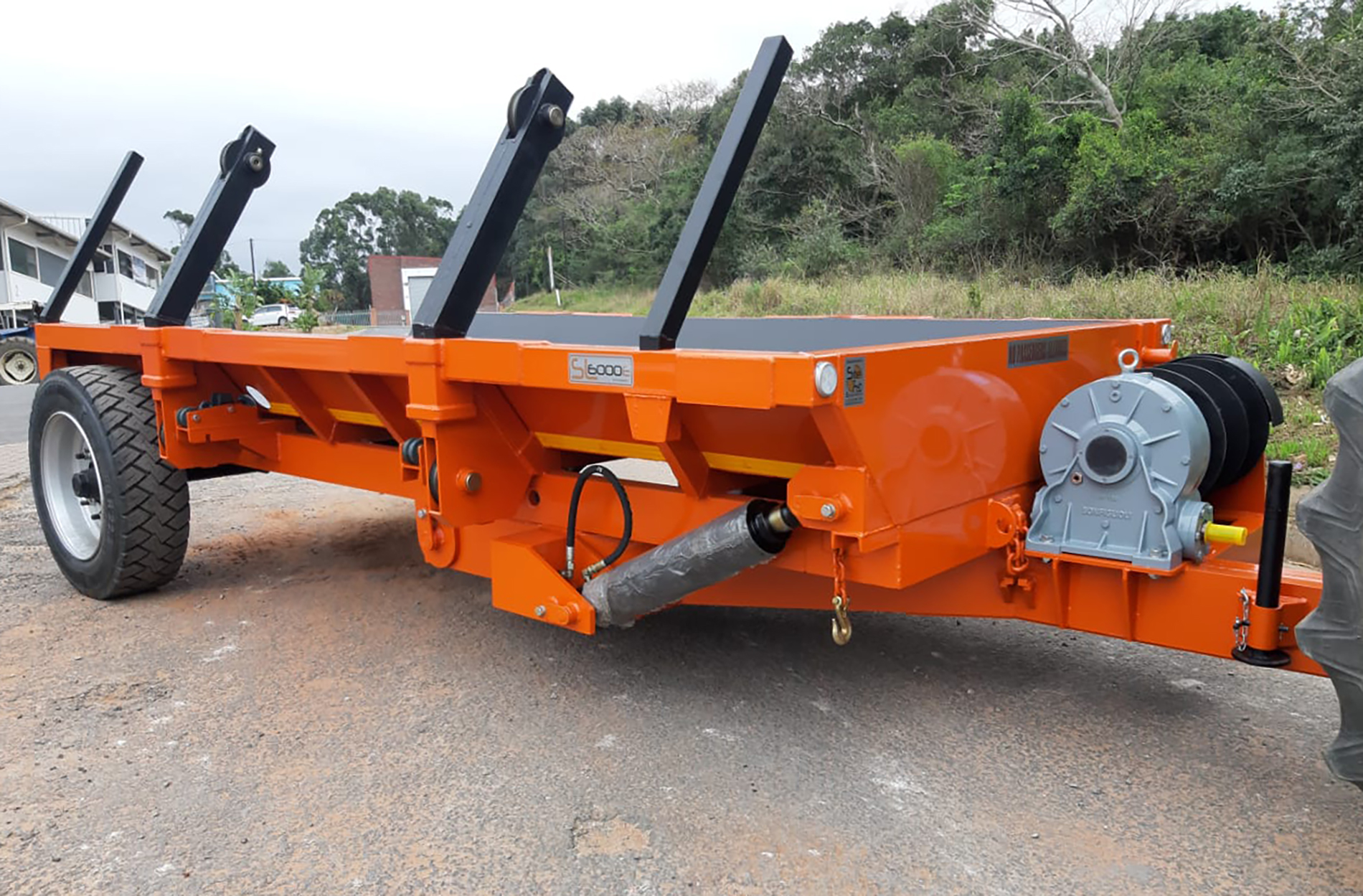

SL 6000-E Self Load Rear Tip Sugar Cane Trailer

Durable 6 ton in field to zone sugar cane bundle self load from left or right rear tip trailer.

Self-side loading (Bundle) whole stalk sugar cane trailer
Rear tipping
Road as well as infield transportation of sugarcane to trans-loading site (zone) or from infield to the mill.
Quick turnaround time.
Can load on level and steep fields.
Light weight entry to field reduces impact to crops and prevents damage to stool
P.T.O or hydraulic driven winch.
Optional tyre size
Versatile, so can be used during downtime for general purpose transportation
Equipped with removable winch posts that can be positioned at the right or left.
Torque limiter to prevent over load & damage to gearbox.
Robust 2 Stage Hydraulic lift rams.
Hydraulic brake axle & P.T.O driven worm winch gearbox & double steel winch drum

LENGTH:	5600 mm
DECK LENGTH:	4000 mm
TOTAL WIDTH:	2360 mm
LOADING HEIGHT:	1100 mm
TARE WEIGHT:	2500 kg
REAR TIPPING ANGLE:	80⁰
TYRE MEASURES:	295/60 R22.5

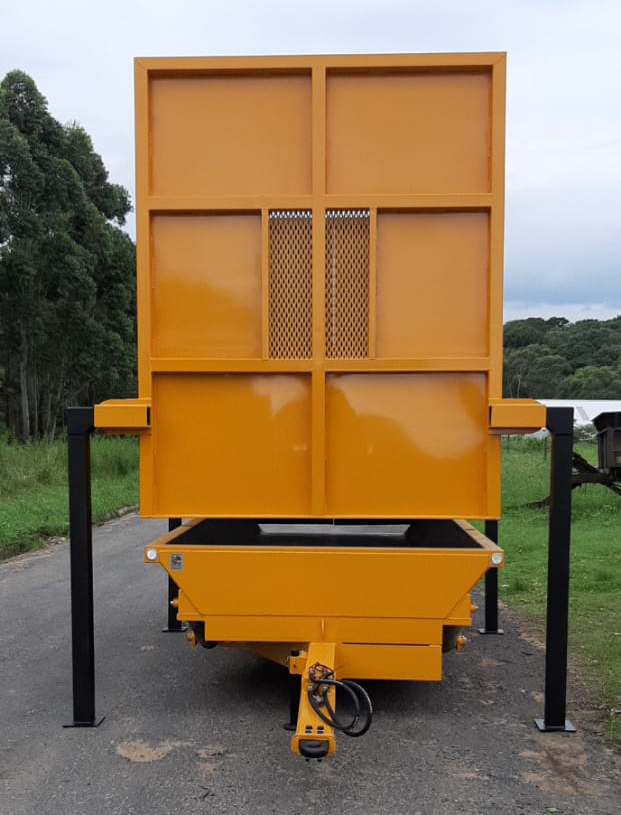

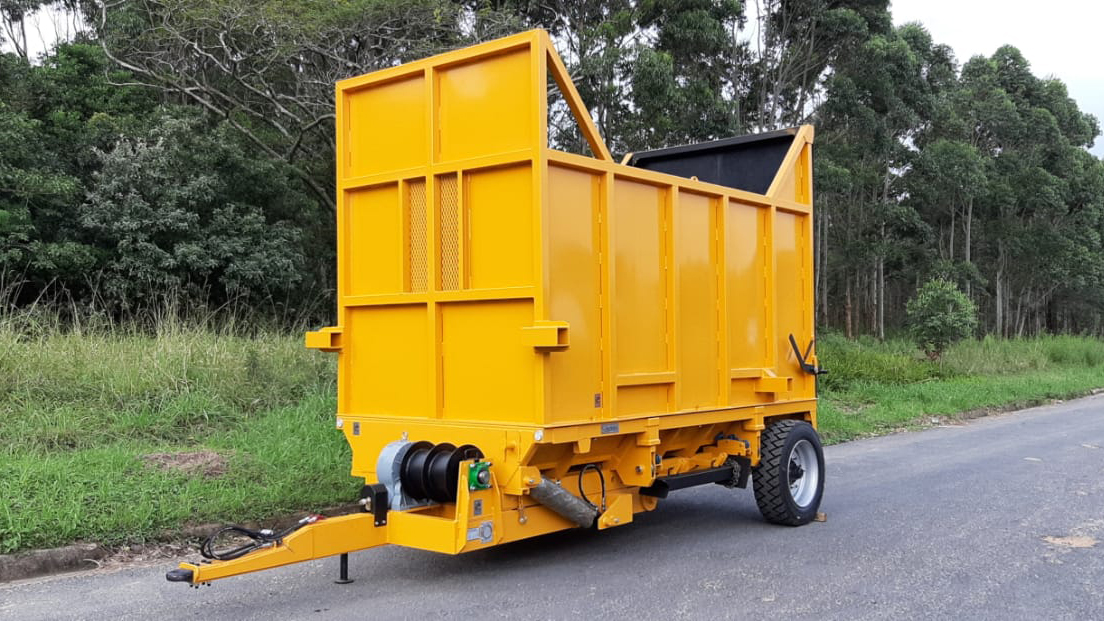

SL 6000 B Dual Purpose Trailer

GP rear tip sugar cane trailer with optional removable box or winch system.

Equipped with a torque limiter to prevent over load & damage to gearbox.
DW 626 12-8 ton 2 stage hydraulic rams.
Specially designed removable box designed to limit cane spillage.
User friendly box installation.

LENGTH:	5600 mm
DECK LENGTH:	4000 mm
TOTAL WIDTH:	2360 mm
LOADING HEIGHT:	1100 mm
LOADING HEIGHT WITH BOX:	1830 mm
TARE WEIGHT:	2500 kg
REAR TIPPING ANGLE:	80⁰
TYRE MEASURES:	295/60 R22.5

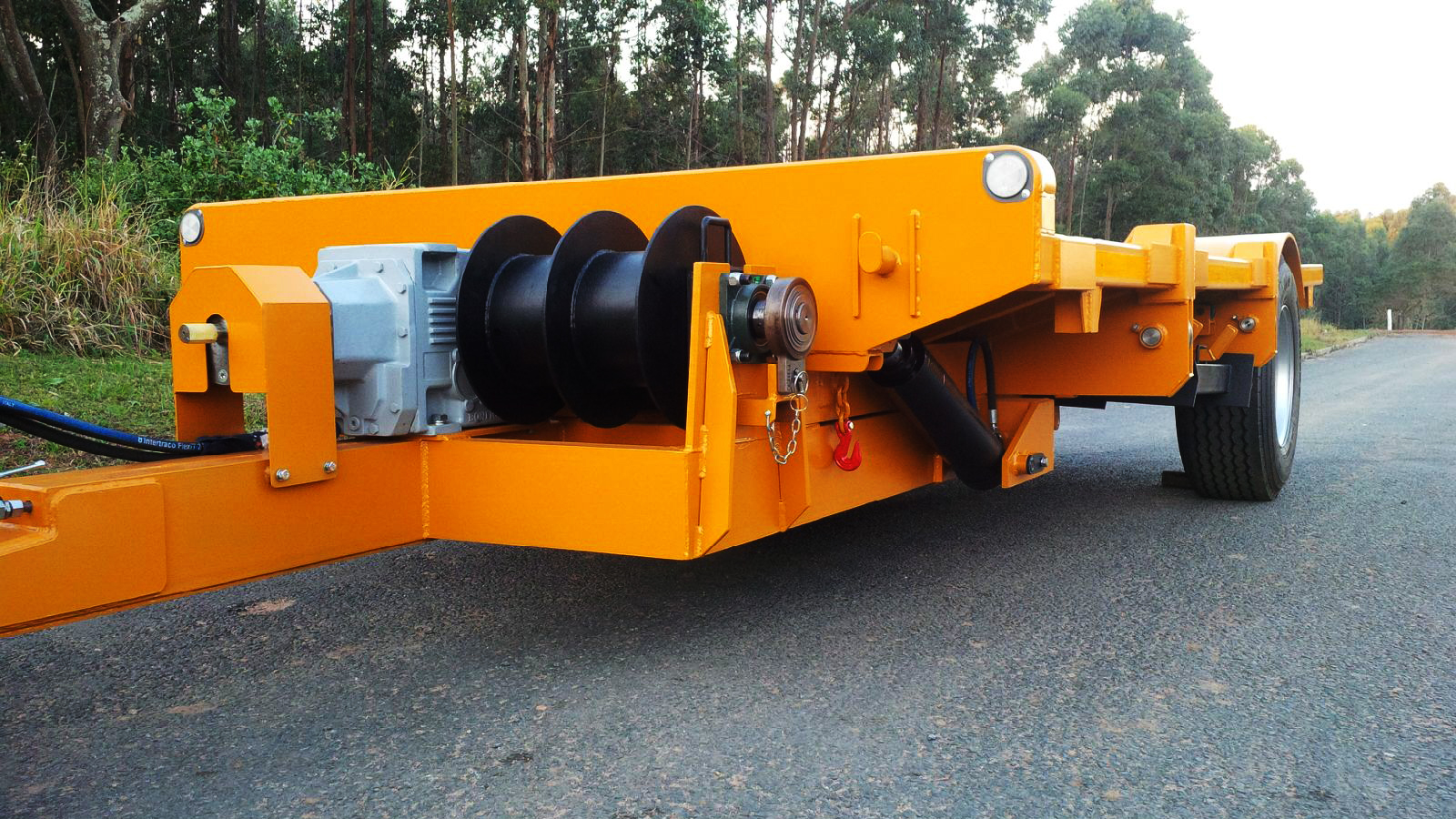

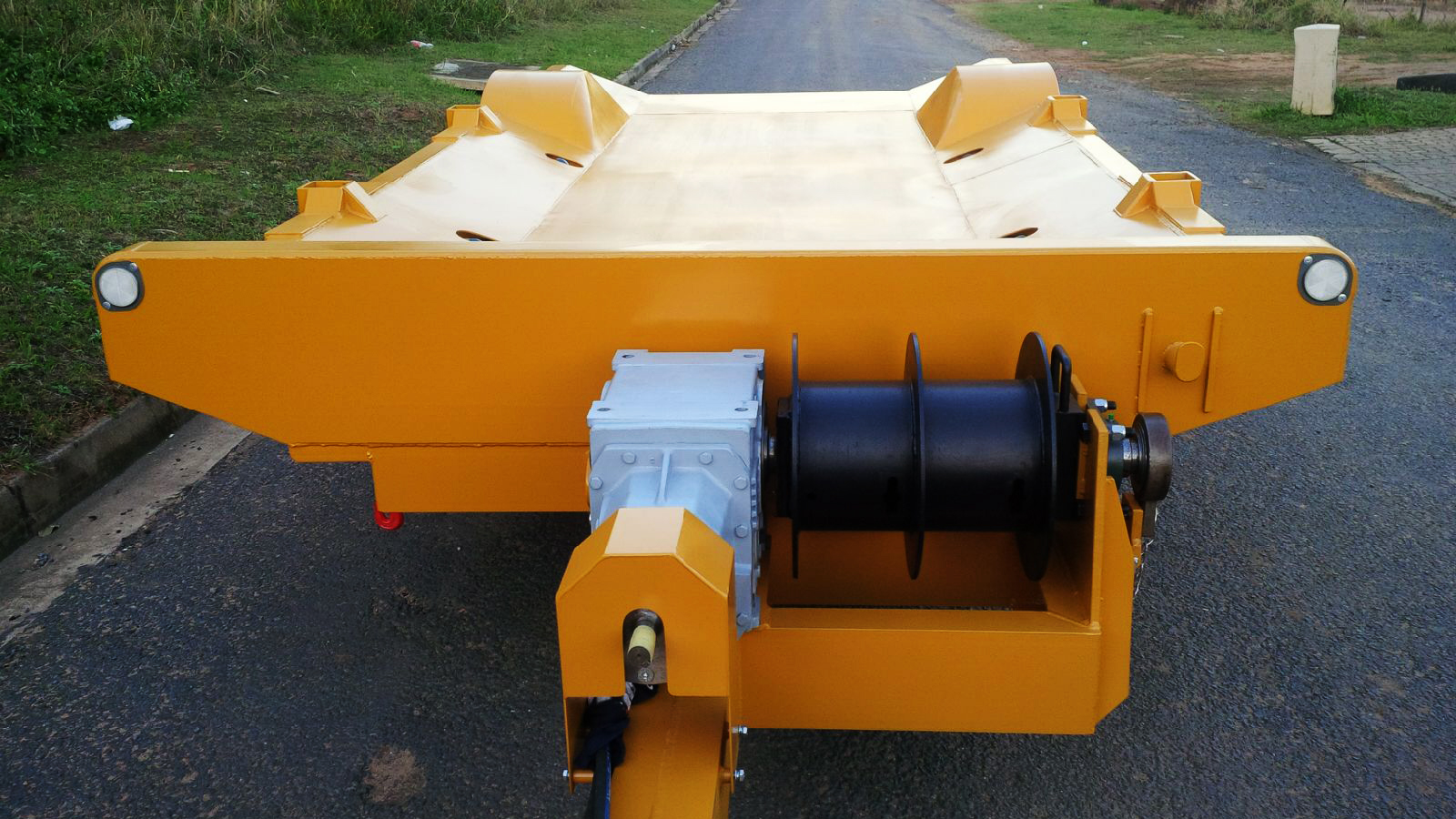

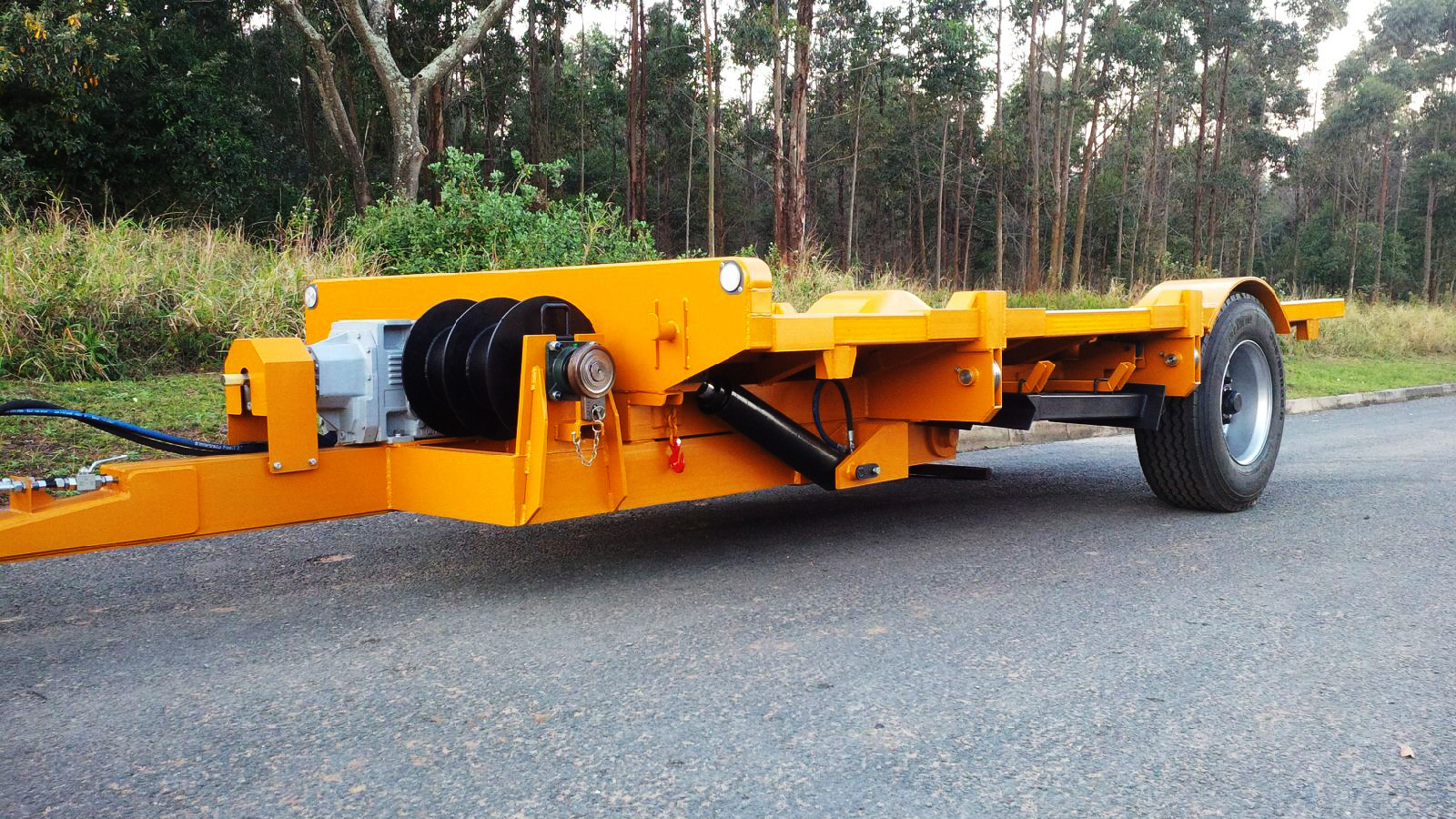

SL 8000

Durable 8 ton in field to mill sugar cane bundle self loading from left or right rear tip trailer.

LENGTH:	6400 mm
DECK LENGTH:	4800 mm
TOTAL WIDTH:	2500 mm
LOADING HEIGHT:	1200 mm
TARE WEIGHT:	2650 kg
REAR TIPPING ANGLE:	80⁰
TYRE MEASURES: (Optional)	385/65 R22.5

Equipped with removable winch posts that can be positioned at the right or left.
Equipped with a torque limiter to prevent over load & damage to gearbox
Making loading and unloading a lot faster.
Hydraulic lift cylinders.
Heavy duty braked axle.
Park brake

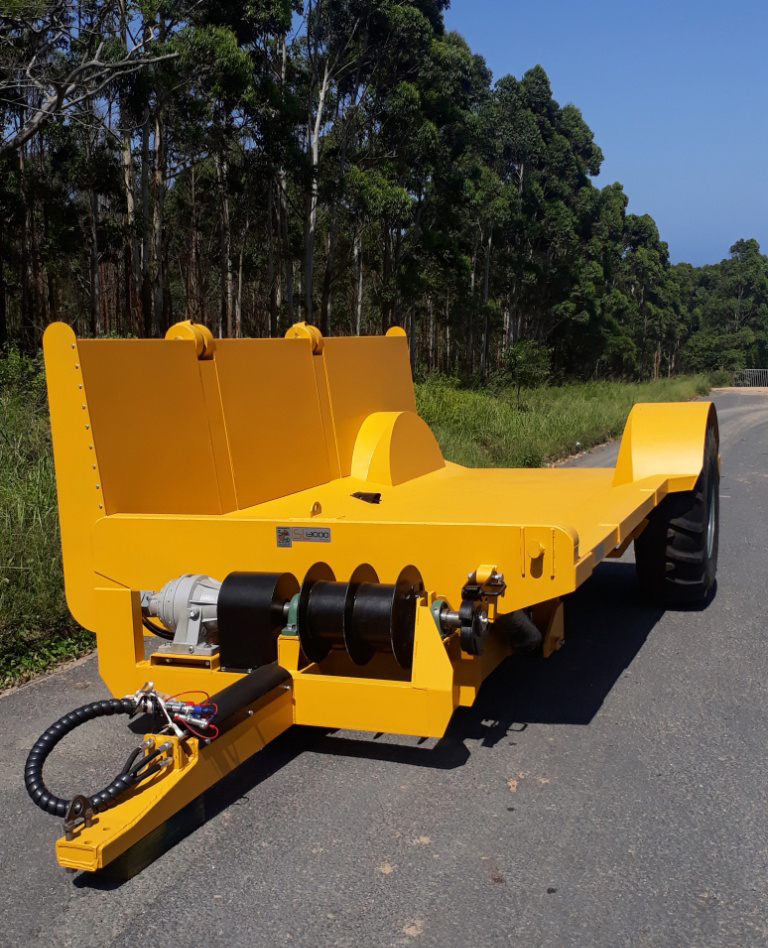

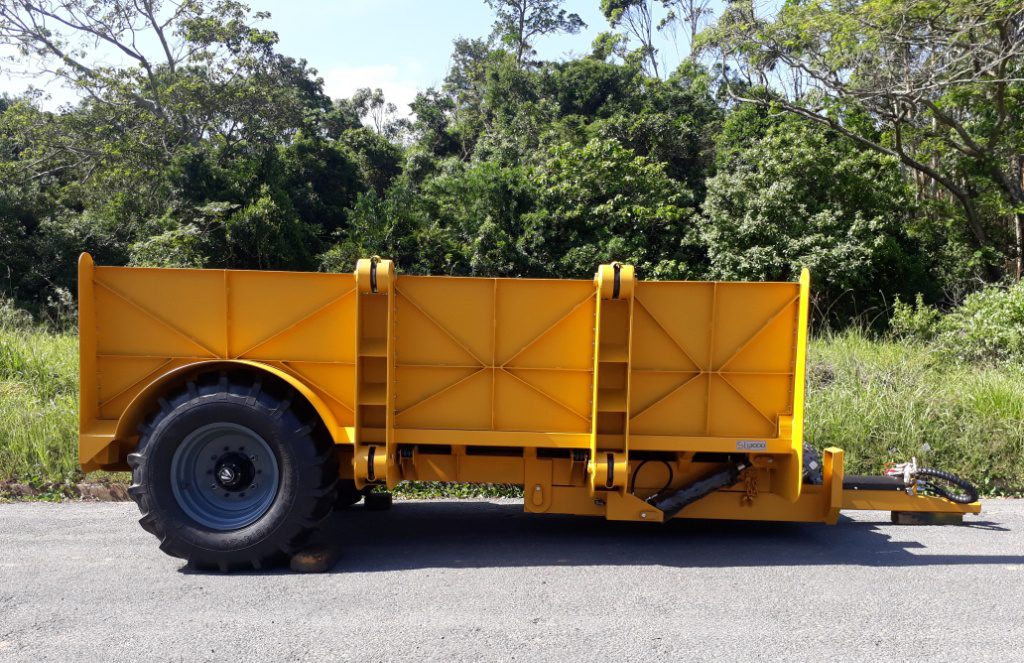

SL 12000

Durable 12 ton in field to zone or in field to mill sugar cane bundle self loading from left rear tip trailer.

Fixed side board to eliminate cane spillage.
Hydraulic Drive connected to heavy duty planetary winch gearbox and double steel cable winch drum.
Heavy duty hydraulic brake axle.

LENGTH:

6800 mm

DECK LENGTH:

4800 mm

TOTAL WIDTH:

2850 mm

LOADING HEIGHT:

1000 mm

TARE WEIGH :

4000 kg

REAR TIPPING ANGLE:

60⁰

TYRE MEASURES: (Optional)

18.4 R26

SFT Trailers

SFT 10 | SFT 12

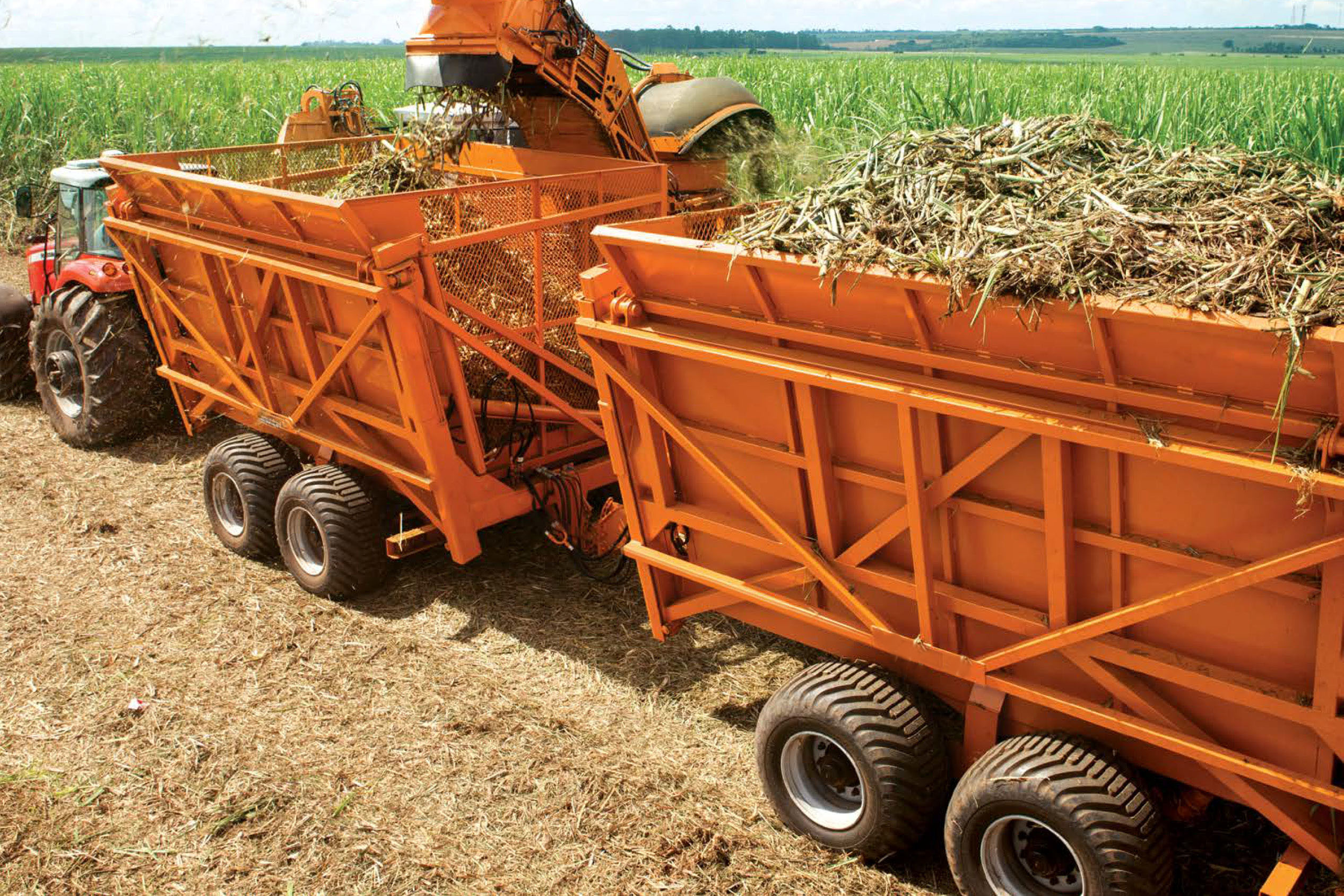

The SFT range of trailers is the go to high lift cane trailers.

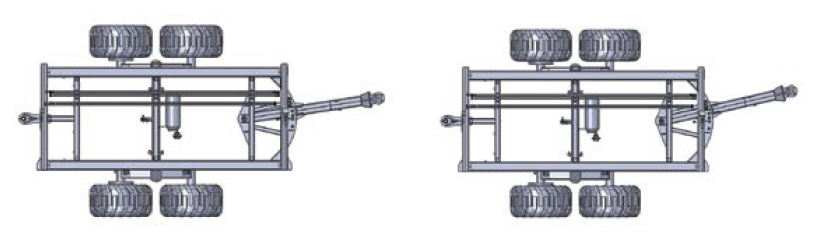

Available in single or tandem configuration

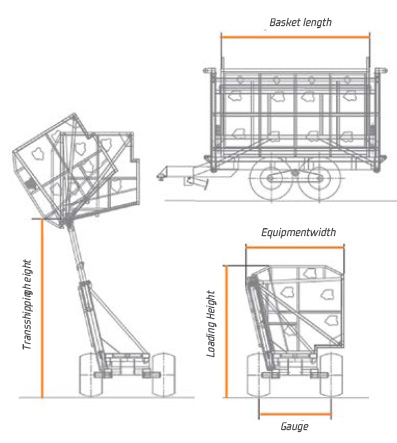

SFT 10 Tandem

Available in single or tandem

LOAD CAPACITY:	up to 10 Tons
VOLUME:	24 cubm
GAUGE:	1900 – 3000 mm
WEIGHT:	5970 kg
BASKET LENGTH:	4060 mm
TOTAL WIDTH	3669 mm
LOADING HEIGHT:	3581 mm
TRANSSHIPPING HEIGHT:	4688 mm
TYRE MEASURES:	600/50-22.5

SFT 12 Tandem

Available in single or tandem

LOAD CAPACITY:	12 Tons
VOLUME:	28 cubm
GAUGE:	2500 – 3000 mm
WEIGHT:	7310 kg
BASKET LENGTH:	4500 mm
TOTAL WIDTH:	3750 mm
LOADING HEIGHT:	3665 mm
TRANSSHIPPING HEIGHT:	4835 mm
TYRE MEASURES:	600/50-22.5 710/40-22.5
